  CONNECTOR PLIERS

PA-08･10･15

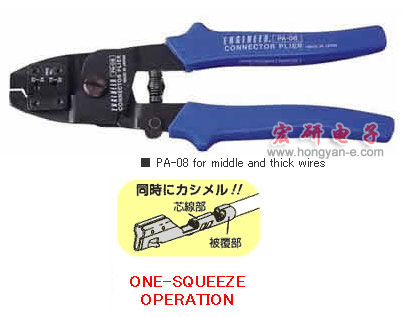

DOUBLE ACTION MECHANISM！！
Our Crimping Pliers series enable you to crimp lead wire and
sheath portions by one squeeze at the same time.






Model
Crimper Conductor's Cross Section
(mm2) 		AWG O.A. Length

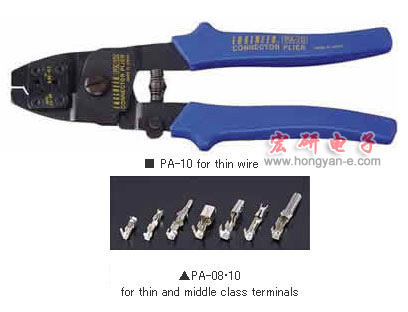

PA-10 A*, B 0.2～0.3（※） 22～24 200 mm
PA-08 A 0.2～0.3 22～24 197 mm
B 0.5～0.9 18～20

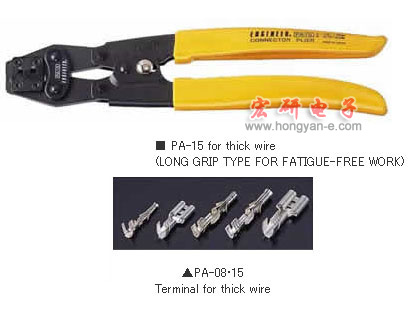

PA-15 A 0.5～1.25 　 250 mm
B 0.75～2.0 　

● * Crimper "A" of PA-10 is suitable for crimping of open barrel terminals whose conductor's portion is very short.

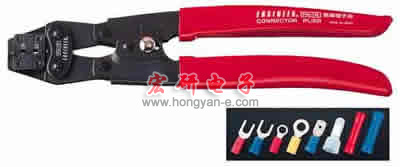

  CONNECTOR PLIERS (For Insulated Terminals)

PA-16


■ PA-16 SPECIFICATIONS      O.A. Length: 250 mm        Net Weight: 400 g

Model
Conductor's Cross Section
(mm2)
PA-16 "A" Crimper : 1.25
"B" Crimper : 2.0
