  SCREW PLIERS M2

PZ-57


                              Slender jaws and pocket-sized body

● Ideal for unfastening damaged or special screws of small size

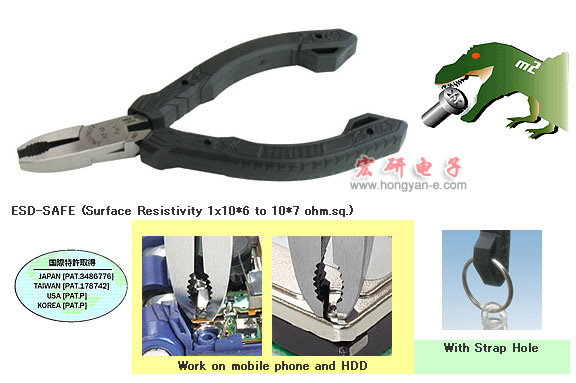

● ESD-Safe handle made of thermoplastic elastomer
featuring oil resistance
● Grip end with strap hole


★ Lots of Applications★

　　 PZ-57 / PZ-55 / PZ-56 COMPARISON TABLE
Model PZ-57 PZ-55 PZ-56
Overall Length 120mm 150mm 175mm
Weight 100g 125g 187g
Hardness
HRC56±2
Material S58C S58C CrV
Screws
Adaptable		 Top Jaws M1～M2 M1.6～M4 M1.7～M6
Side Jaws M2～M3 M3～M5 M3～M8

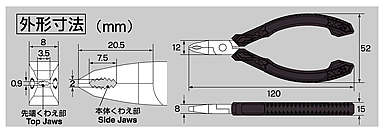

■ SPECIFICATIONS　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
Model
Size Hardness Material Weight
PZ-57 120mm HRC56±2 S58C 100g
