WIRE
PLIERS SERIES
=FEATURES=
● Multi-purpose and
compact wire pliers used
for crimping, stripping
and cutting
for
precision wiring work
● Durable body and
precise cutting blade
for efficient work
|
|
|
|
|
|
 |
●
6-in-1multi-purpose
type
● For bare,
insulated &
splices
(open
barrels)
terminals
● with wire
stripper and
bolt cutter
● O.A.
Length : 245
mm
● Weight :
250 g |
|
|
|
|
|
|
 |
|
|
● For bare & insulated terminals with wire
stripper and bolt cutter
● O.A. Length: 225 mm
● Weight 220g |
|
|
|
|
|
|
|
|
 |
|
|
● For
splices
(open barrel
terminals)
with wire
stripper and
bolt cutter
● O.A.
Length : 210
mm
● Weight :
205g |
|
|
|
|
|
|
 |
|
|
● For
bare
terminals
with wire
stripper and
bolt cutter
● O.A.
Length: 210
mm
● Weight :
205g |
|
|
 |
|
■
COMPARISON
TABLE OF
PA-Series |
（mm2） |
|
Model
|
A
|
B |
C |
D
|
E
|
F
|
|

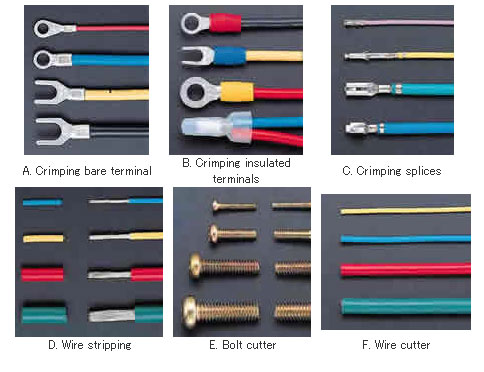

Bare
Terminal |
Insulated
Terminal |
Splices |
Wire
Stripping |
Bolt Cutter |
Wire Cutter |
|

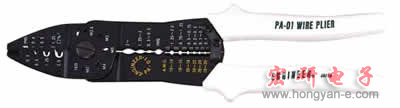

PA-01
|
0.5 ～2.0
|
0.3 ～2.0 |
0.3 ～1.25 |
0.1 ～2.0 |
M2 ～M5 |
○ |
|

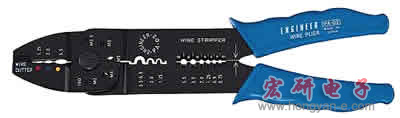

PA-02
|
1.25 ～5.5 |
1.25 ～5.5 |
－ |
0.75 ～5.5 |
M2 ～M5 |
○ |
|

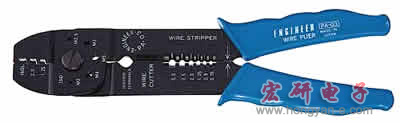

PA-03
|
－ |
－ |
1.25 ～2.0 |
0.75 ～5.5 |
M2 ～M5 |
○ |
|

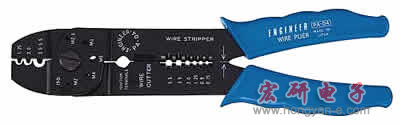

PA-04
|
1.25 ～5.5 |
－ |
－ |
0.75 ～5.5 |
M2 ～M5 |
○ |
|
|
|
|
A.W.G.
|
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
30
|
Sectional
Area (mm2)
|
8.37 |
5.26 |
3.31 |
2.08 |
1.31 |
0.82 |
0.52 |
0.33 |
0.20 |
0.13 |
0.08 |
0.05 |
Wire
Diameter
(mm)
|
3.26 |
2.59 |
2.05 |
1.63 |
1.29 |
1.02 |
0.81 |
0.64 |
0.05 |
0.41 |
0.32 |
0.25 |
|
|
|
|
TOP |
| |
