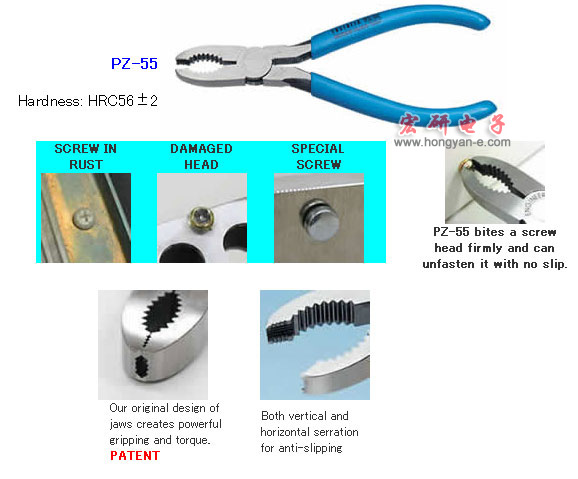

  SCREW PLIERS

PZ-55

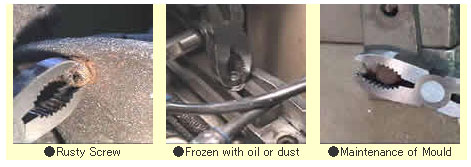

Make best use of PZ-55 & 56 while screwdriver being no use !
● Screw frozen with rust
● Screw whose head was damaged and transformed
● Screw whose slot on the head is special, unique
or tamper-proof


★ Lots of Applications★


Maintenance of Automobile, Production Machinery, Drainage, etc.

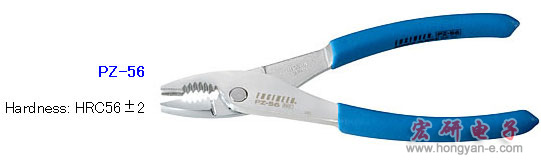

  SCREW PLIERS

PZ-56




Screw Pliers XP
2nd Generation released with more advanced function !
Featuring slip-joint structure and slender-top design

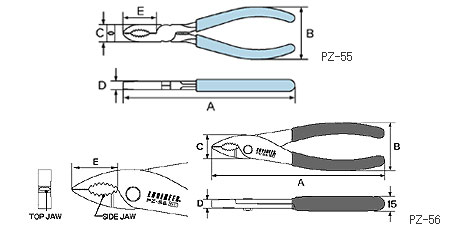

■PZ-55 & PZ-56 DIMENSIONS                                                                                                     (mm)

Model
A
B
C
D
E
Wgt.
Material Screws Adapted
PZ-55
150 53
17
9
29
125 g
S58C M1.6 to M4
PZ-56 175 48 23 8.5 27 187 g CrV M1.7 to M6
