| 1.线圈数据 |
|
| 1-1.额定电压 |
6
to 48 VDC |
| 1-2.线圈电阻 |
Refer
to table 1 |
| 1-3.动作电压 |
Refer
to table 1 |
| 1-4.释放电压 |
Refer
to table 1 |
| 1-5.额定电力消耗 |
1,900m
W |
| |
|
| 2-1.触点型式 |
1
Form A /2FormA |
| 2-2.触点材料 |
AgCdO |
| 2-3.额定下载 |
|
下载
|
G7L-1A-T
|
G7L-2A-T
|
G7L-1A-P,G7L-2A-P,
|
|
Resistance
load
(COSØ=1)
|
Resistance
load
(COSØ=1)
|
Resistance
load
(COSØ=1
|
|
额定 下载
|
30A,220VAC
|
25A,220VAC
|
20,220VAC
|
|
运送电流
|
30A
|
25A
|
20A
|
|
最大额定电压
|
250VAC
|
| 最大额定电流 |
30A
|
25A
|
20A
|
|
最大整流容量
|
6,600VA
|
5,500VA
|
4,400VA
|
|
最小可允许下载
|
100mA,5VDC
|
|
| 2-4.初始接触电阻 |
∷50
mΩ.at 5VDC 1A |
| 2-5.最大转换电流 |
电气寿命 |
>100,000
operations at nominal load |
| 机械寿命 |
>5,000,000
operations |
| 3-1.绝缘电阻 |
Min.1000MΩ
at 500 VDC |
| 3-2.介质耐压 |
2000VAC
, 1min between open contacts
4,000VAC , 1min between contacts and coil |
| 3-3.动作时间 |
30ms
Max. |
| 3-4.释放时间 |
30ms
Max. |
| 3-5.使用湿度范围 |
-20
to +85 ℃ |
| 3-6.抗冲击性 |
功能 |
Min.100m/s2(10G) |
| Destructive |
Min.1000m/s2(10G) |
| 3-7.抗振性 |
10
to 55 Hz ,1.5mm Double Amplitude |
| 3-8.最大抵挡电压 |
10000V
between contact and coil(1.20x50µs) |
| 3-9.重量 |
Quick
connect terminal Type: |
90gr. |
| PCB
terminal Type: |
100gr. |
| 3-10.安全认证 |
UL,CSA,TUV,VDE |
 |

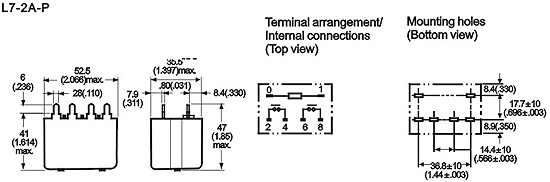

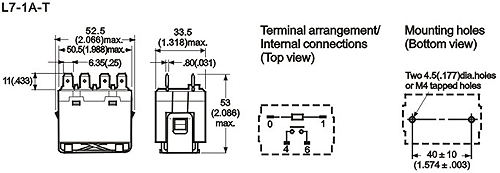

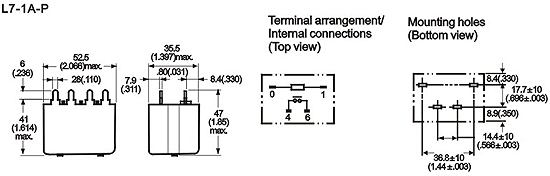

TERMINAL
SHAPE
T-QUICK-CONNECT TERMINALS
P-PCB TERMINALS |
CONTACT
ARRANGEMENT
1A-1FORM A
2A-2FORM A |
COIL
VOLTAGE
DC6V, DC12V, DC24V, DC48V |
| RELAY
SERIES |
|
|
订购代码
|
线圈电压
VDC |
线圈电阻
Ω +/- 10% |
动作电压
VDC |
释放电压
VDC |
功耗
mW |
| L7-DC6V |
6 |
18.9 |
4.5 |
0.9 |
1900 |
| L7-DC12V |
12 |
75 |
9 |
1.8 |
| L7-DC24V |
24 |
303 |
18 |
3.6 |
| L7-DC48V |
48 |
1220 |
36 |
7.2 |
