| 1.线圈数据 |
|
| 1-1.额定电压 |
6
to 12 VDC |
| 1-2.线圈电阻 |
Refer
to table 1 |
| 1-3.动作电压 |
Refer
to table 1 |
| 1-4.释放电压 |
Refer
to table 1 |
| 1-5.额定电力消耗 |
0.6/0.8
W |
| |
|
| 2-1.触点型式 |
1
Form C , 1 Form A |
| 2-2.触点材料 |
Silver-Tin
oxide indium |
| 2-3.额定下载 |
20A
14VDC Locked Motor load
10A 14VDC Resistive |
| 2-4.最大转换电压 |
16VDC |
| 2-5.最大下载电流 |
35A/10min.25A/1
Hr |
| 2-6.Max.
整流 下载 |
35A |
| 2-7.最大突入电流 |
60A |
| 2-8.最小下载电流 |
6VDC
1A |
| 2-9.初始接触电阻 |
∷50mΩ.at6VDC
1A |
| 2-10.耐久性(平均寿命) |
电气寿命 |
200,000operations |
| 机械寿命 |
10,000,000
operations |
| 3-1.绝缘电阻 |
Min.100MΩ
at 500 VDC |
| 3-2.介质耐压 |
500VAC ,
1min between open contacts
500VAC , 1min between contacts and coil |
| 3-3.动作时间 |
Max. 10ms |
| 3-4.释放时间 |
Max.
10ms |
| 3-5.使用湿度范围 |
-40
to +85
℃ |
| 3-6.抗冲击性 |
10G |
| 3-7.抗振性 |
10 - 55 Hz
, Amplitude 1.5mm |
| 3-8.重量 |
6 gr. |
 |

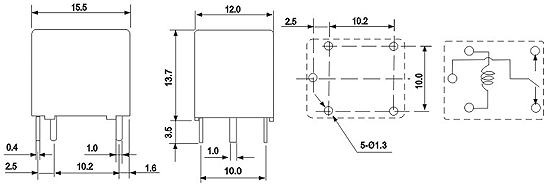

CONTACT
ARRANGEMENT
C-1FORM C
A-1 FORM A |
COIL
VOLTAGE
DC6V , DC9V , DC10V, DC12V |
ENCLOSURE
NIL -FLUX FREE
S-WASHABLE |
RELAY
SERIES
CMA51,CMA51H-CONTACT GAP:0.3mm
CMA52-CONTACT GAP:0.6mm |
|
|
订购代码
|
线圈电压
VDC |
线圈电阻
Ω
+/- 10% |
动作电压
VDC |
释放电压
VDC |
功耗
mW |
| CMA51H-(S)-DC6V |
6 |
60 |
3.6 |
0.6 |
600 |
| CMA51H-(S)-DC9V |
9 |
135 |
5.4 |
0.9 |
| CMA51H-(S)-DC10V |
10 |
180 |
6.0 |
1.0 |
| CMA51H-(S)-DC12V |
12 |
240 |
7.2 |
1.2 |
| CMA51/52-(S)-DC6V |
6 |
45 |
3.6 |
0.6 |
800 |
| CMA51/52-(S)-DC9V |
9 |
100 |
5.4 |
0.9 |
| CMA51/52-(S)-DC10V |
10 |
135 |
6.0 |
1.0 |
| CMA51/52-(S)-DC12V |
12 |
180 |
7.2 |
1.2 |
|
