| 振动器：使用密封式脉冲方式操作，低振动、低噪音、耐久更优越。 |
| |

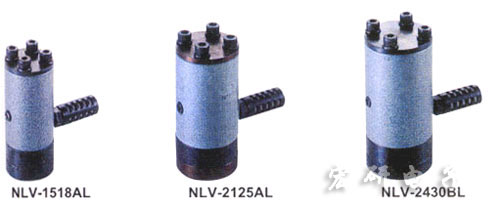

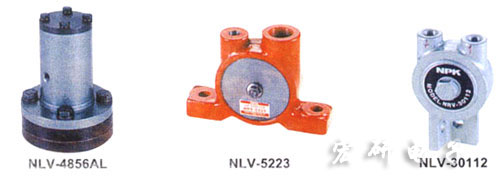

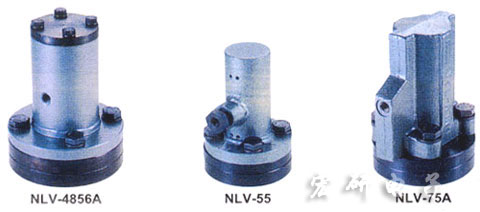

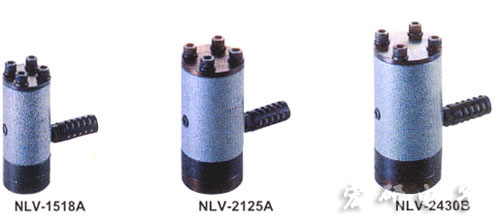

| 产品型号：NLV-1518AL、NLV-2125AL、NLV-2430BL、NLV-4856AL、NLV-5223、NLV-30112、NLV-1518A、NLV-2125A、NLV-2430B、NLV-4856A、NLV-55、NLV-75A |
| |
|
 |
| |
|
 |
| |
|
 |
| |
|
 |
| |
|
|
型号
|
每分钟振动
|
高度
|
净重
|
螺栓尺寸
|
螺栓斜度
|
进气口螺纹
|
软管尺寸
|
平均消耗空气
|
推荐空气压力
|
|
min-1
|
mm
|
in
|
kg
|
lb
|
mm
|
in
|
mm
|
in
|
Rc or NPT
|
mm
|
in
|
m3/min
|
ft3/min
|
MPa
|
kgf/cm2
|
psi
|
|
NLV-1518AL
|
3,650
|
110
|
4 11/32
|
1.6
|
3.5
|
8
|
-
|
□25
|
63/64
|
1/4
|
6.3
|
1/4
|
0.16
|
5.7
|
0.6
|
6
|
85
|
|
NLV-2125AL
|
3,500
|
120
|
4 23/32
|
2.2
|
4.8
|
8
|
-
|
□30
|
1 3/16
|
1/4
|
6.3
|
1/4
|
0.23
|
8.1
|
0.6
|
6
|
85
|
|
NLV-2430BL
|
3,500
|
130
|
5 1/8
|
2.8
|
6.2
|
8
|
-
|
□35
|
1 3/8
|
3/8
|
6.3
|
1/4
|
0.24
|
8.5
|
0.6
|
6
|
85
|
|
NLV-4856AL
|
2,050
|
220
|
8 21/32
|
18.6
|
40.9
|
16
|
-
|
□96
|
3 25/32
|
1/4
|
9.5
|
3/8
|
0.66
|
23.3
|
0.6
|
6
|
85
|
|
NLV-1518A
|
4,500
|
110
|
4 11/32
|
1.6
|
3.5
|
8
|
-
|
□25
|
63/64
|
1/4
|
6.3
|
1/4
|
0.06
|
2.1
|
0.4
|
4
|
57
|
|
NLV-2125A
|
4,350
|
120
|
4 23/32
|
2.2
|
4.8
|
8
|
-
|
□30
|
1 3/16
|
1/4
|
6.3
|
1/4
|
0.07
|
2.5
|
0.4
|
4
|
57
|
|
NLV-2430B
|
3,500
|
130
|
5 1/8
|
2.8
|
6.2
|
8
|
-
|
□35
|
1 3/8
|
1/4
|
6.3
|
1/4
|
0.08
|
2.8
|
0.4
|
4
|
57
|
|
NLV-4856A
|
2,100
|
220
|
8 21/32
|
18.7
|
41.4
|
16
|
-
|
□96
|
3 25/32
|
3/8
|
9.5
|
3/8
|
0.39
|
13.8
|
0.4
|
4
|
57
|
|
NLV-55
|
2,450
|
196
|
7 23/32
|
10.3
|
22.7
|
16
|
-
|
□72
|
2 27/32
|
1/4
|
9.5
|
1/4
|
0.51
|
18.0
|
0.4
|
4
|
57
|
|
NLV-75A
|
2,050
|
276
|
10 7/8
|
32.5
|
71.5
|
22
|
-
|
□105
|
4 9/64
|
1/2
|
12.7
|
1/2
|
0.63
|
22.2
|
0.4
|
4
|
57
|
|
NRV-30112
|
18,000
|
83
|
3 9/32
|
0.4
|
0.9
|
8
|
5/16
|
-
|
-
|
1/4
|
6.3
|
1/4
|
0.15
|
5.3
|
0.6
|
6
|
85
|
|
NRV-5223
|
9,400
|
111
|
4 3/8
|
2.5
|
5.5
|
12
|
1/2
|
□25
|
5 1/8
|
1/4
|
6.3
|
1/4
|
0.5
|
17.7
|
0.6
|
6
|
85
|
|
|
|
|
|
