WIRE STRIPPER |
PA-05～07・14 |
|
|
|
|
■ Very round
finish of
wires after
stripping by
sharp and
precise edge
■ No damage
given to
core wires
!!
==FEATURES==
●Suitable
for both
solid and
stranded
wires
●Oil
resistant
Elastomer (TPR)
handle |
|
|
|
| |

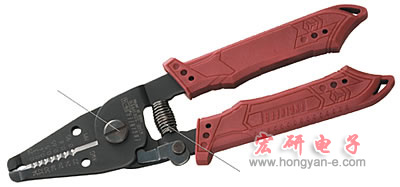

PA-14 for super-thin wire |
|
|
|
|
|
|
 |
Long life and durable
cutter
owing to high carbon
steel material |
|
 |
|
  |
|
|
|
|
|
■PA-14 APPLICATION
SIZE CHART |
|
Stripper's
Hole
Diameter
|
0.25 |
0.3 |
0.4 |
0.5 |
0.65 |
0.8 |
0.95
|
Applicable
Wire |
External
Diameter
(mm) |
0.2 |
0.25 |
0.3 |
0.38 |
0.5 |
0.64 |
0.8
|
|
Sectional
Area (mm2) |
0.025 |
0.035 |
0.05 |
0.08 |
0.13 |
0.2 |
0.33
|
A W G
Conversion |
Stranded |
34 |
32 |
30 |
28 |
26 |
24 |
22 |
|
Solid wire
|
32 |
30 |
28 |
26 |
24 |
22 |
20 |
|
| |

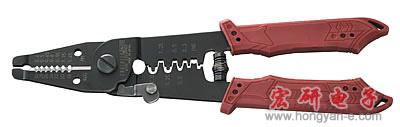

PA-05 for thin wire. with crimping dies equipped |
|
|
|
|
 |
|
|
|
|
|
Bare Terminal
|
Connector
Terminal |
|
0.5 to 2.0 mm2
|
0.3 to 1.25 mm2
|
|
|
|
|
|
|
|
|
Stripper's
Hole
Diameter
|
0.4 |
0.5 |
0.65 |
0.8 |
0.95 |
1.15 |
1.45
|
Applicable
Wire |
External
Diameter
(mm) |
0.3 |
0.38 |
0.5 |
0.64 |
0.8 |
1.0 |
1.3
|
|
Sectional
Area (mm2) |
0.05 |
0.08 |
0.13 |
0.2 |
0.33 |
0.52 |
0.82
|
A W G
Conversion |
Stranded |
30 |
28 |
26 |
24 |
22 |
20 |
18 |
|
Solid Wire
|
28 |
26 |
24 |
22 |
20 |
18 |
16 |
|
|
|
|
|
|
|
 |

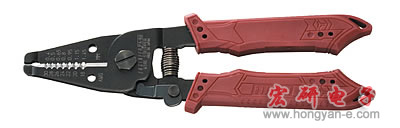

with strap hole |
|
|
|
|
|
|
|
Stripper's
Hole
Diameter
|
0.4 |
0.5 |
0.65 |
0.8 |
0.95 |
1.15 |
1.45
|
Applicable
Wire |
External
Diameter
(mm) |
0.3 |
0.38 |
0.5 |
0.64 |
0.8 |
1.0 |
1.3
|
|
Sectional
Area (mm2) |
0.05 |
0.08 |
0.13 |
0.2 |
0.33 |
0.52 |
0.82
|
A W G
Conversion |
Stranded |
30 |
28 |
26 |
24 |
22 |
20 |
18 |
|
Solid Wire
|
28 |
26 |
24 |
22 |
20 |
18 |
16 |
|
|
|
|
|
|
|
 |
with strap hole |
|
|
|
|
|
|
|
■

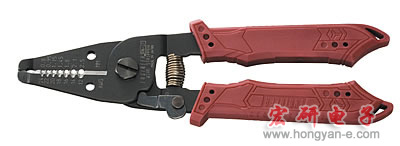

APPLICATION SIZE
CHART （ ）:
Reference only
|
|
Stripper's
Hole
Diameter
|
0.8 |
0.95 |
1.15 |
1.45 |
1.8 |
2.1 |
2.5
|
Applicable
Wire |
External
Diameter
(mm) |
0.64 |
0.8 |
1.0 |
1.3 |
1.5 |
1.9 |
2.4
|
|
Sectional
Area (mm2) |
0.2 |
0.33 |
0.52 |
0.82 |
1.31 |
2..08 |
3.31
|
A W G
Conversion |
Stranded |
24 |
22 |
20 |
18 |
16 |
14 |
12 |
|
Solid Wire
|
22 |
20 |
18 |
16 |
14 |
(12) |
(10) |
|
|
|
|
Minimum stripping
Length 1mm!! |
|
|
 |
|
|
|
●Adjustable stripping
length let you work more
efficiently and reduces
error. |
|
|
|
