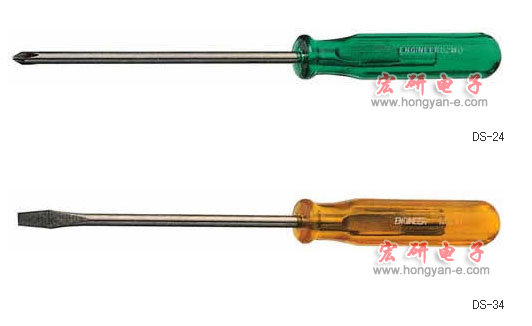

  STANDARD DRIVER

DS-03～85




● Chrome-vanadium alloy steel and completely heat-treated blade
● Black oxide finish blade
● Knurled shaft for quick rotation

■(Phillips(+) Standard Driver
（mm）
Model
Blade Size Shaft Length Shaft Diam. Handle Diam. O.A. Length
DS-03
#00 75 3 11 129
DS-23
#0 75 4.3 16 150
DS-24 #0 100 4.3 16 175
DS-44 #1 100 5.5 18 185
DS-46 #1 150 5.5 18 235
DS-64 #2 100 6.3 22 194
DS-85 #3 125 8 28 228

■Slotted(-) Standard Driver
（mm）
Model
Blade Size Shaft Length Shaft Diam. Handle Diam. O.A. Length
DS-12
2.6×0.35 50 3 11 104
DS-13
2.6×0.35 75 3 11 129
DS-14 2.6×0.35 100 3 11 154
DS-16 2.6×0.35 150 .3 11 204
DS-33 4.0×0.5 75 4.3 16 150
DS-34 4.0×0.5 100 4.3 16 175
DS-36 4.0×0.5 150 4.3 16 225
DS-54 5.5×0.7 100 5.5 18 185
DS-76 6.0×0.8 150 6.3 22 244
