FIBER Checker
FC-2001
|
|
|
|
The

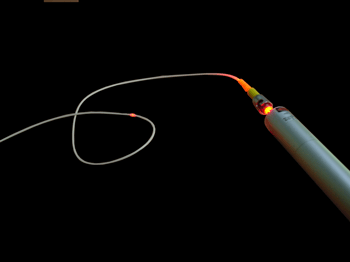

FIBER Checker sends a visible safe red laser
light down the fiber locating any breaks or
unseen faults in your cable. |
| |
|
|
Specification:
-
Wavelength:635nm
-
Peak Power:
>0.5mW
-
Connector:
Universal Connector which accept FC, SC,
ST and any other with 2.5mm diameter
ferrule
-
Mode of
operation: Pulsed or CW, 1-3Hz
-
Housing
Barrel (Silver or Black): On/Off switch
at the end of housing
-
Dimension:
15.5 mm (diameter) x 150 mm (L)
-
Power Source:
2 x N Battery
-
Storage Temp:
-10 to 60 degree
-
Operating
Temp.: 0 to 40 degree
|
 |
| |
|
 |
 |
| |
|
 |
| |
|
Order
Information:
|

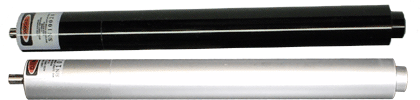

FC-2001 |
FIBER Checker (Silver) |
|
FC-2001/B |
FIBER Checker (Black) |
|
|
|
|
|
|
|
|
