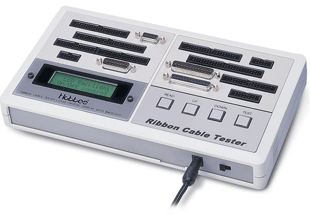

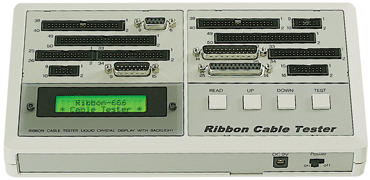

Ribbon Cable
Tester
|
|
|
Features:
-
Tests actual
pin configuration of IDE Ribbon cables using LCD
wire mapping display
-
An
intelligent CPU will memorize a standard wiring
configuration for pass/fail testing of numerous
cables
-
Detects open
wires, shorted wires and miswiring
-
A
back-lighted liquid crystal display enables you
to easily read the tested results in any working
environment
-
With
optional PC Cable Test Interface Unit, can be
expanded to test the most commonly used PC data
cables including multimedia cables, laptop PC
cables, Ethernet cables, modular cables and even
USB cables
- Includes
storage pouch
|
 |
|
 |
 |
Specifications:
-
Connectors
|
Input - |
IDC50 male, IDC40 male, IDC34 male,
IDC26 male, IDC10 male, DB15 male, DB9
female |
|
Output - |
IDC50 male, IDC40male, IDC34 male, IDC16
male, IDCl0 male, DB25 male, DB25 female
|
-
Control
Switches - Read, Test, Up &
Down
-
Display -
Liquid crystal display with back-light
|
-
Extension
ports - 2 x 40 pins IDC male connectors
-
Power - 9V
DC Battery or 110/220V to 9V DC 150mA 2.50 power
jack
-
Size
250Lx134Wx35H(mm), (9,9" x5.3" x1.38" )
-
Weight 1.76
lbs.
|
|
Order Information:
|
258894 |
Ribbon
Cable Tester (Stand alone) |
|
258895 |

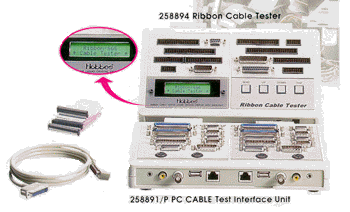

Ribbon Cable Tester Kit A.
(Includes 258894 and PC Test Interface Unit) |
|
258896 |
Ribbon Cable Tester Kit B.
(includes
258894 and MAC Test Interface Unit) |
|
|
|
