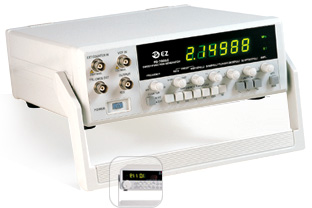

FREQUENCY

- Output waveform : Sine, Triangle, Square, Pulse sawtooth, Ramp, TTL, CMOS
- Frequency range : 0.02Hz~5MHz in the 7 ranges
- Frequency accuracy : ± 1 count

EXTERNAL

FREQUENCY CONTROL(VCF)

- Input voltage : 0 to 10V(DC + AC peak)
- Frequency variable range : 100 : 1 or more
- DC offset : ±10V(without load), ±5(with load)
- Symmetrical variable range : 10 : 1 to 1 : 10 or more

    SINE WAVE

- Distortion : less than 1%(0.2Hz ~ 100kHz)

    SQUARE WAVE

- Rise / fall time : less than 25ns

    TRIANGLE WAVE

- Linearity : less than 1% up to 100kHz and less than 5% up to 2MHz

TTL OUTPUT

- Output : TTL level
- Rise/fall time : less than 25ns

CMOS OUTPUT

- Output : 4V~15V ± 1V, continuously variable
- Rise/fall time : less than 40ns (at Max. output level_

SWEEP

- Width : 1 : 1 to 100 : 1
- Rate : 20ms to 2s (50hz to 0.5Hz)
- Internal sweep : linear
- External sweep : by means of VCF input

OUTPUT

- Output voltage : 20Vp-p (open circuit), 10Vp-p(into 50Ω)
- Attenuator : -20dB
- Impedance : 50Ω ± 5%

FREQUENCY
COUNTER

- Display : 6 digit green LED(0.2Hz ~ 50MHz)
- Accuracy : time base error ± 1 counter
- Input sensitivity : 100mV on kHz range and 300mV on MHz range
- Max. input voltage : 150Vrms at 1kHz

GENERAL

- Operating environments : 0℃ ~ 35℃, 85% RH
- Range for guaranteed : 25℃± 5℃, 75% RH
- Power requirement : AC 115 / 230V ± 10%, 50/60Hz
- Power consumption : approx. 20W
- Dimension : 255mm(W) X 80mm(H) X 260(D)
- Accessories : power cord, fuse, operation manual, BNC cable
