MS-1280

Oscilloscope Features
 - DC to 5  Bandwidth
 - 20MS/sampling rate
 - Wave monitoring up to 20㎒ by PLL
 - Single input channel
 - Graphic Display
  - 8 horizontal 4 vertical division
  - Text display : Vpp, MIN/MAX V, Freq.
 - Auto Setup function
 - Trigger
  - Auto and Internal mode
  - Slope and 5 levels selectable
 - Cursor Measurement Δt , 1/Δt , Δv

Multimeters Features
 - Auto Ranging 3 3/4 digit (3999 counts)
 - Triple diplay for related reading
 - True RMS
 - Additional 43 segment Bargraph display
 - Data-Hold and Range-Hold
 - Auto/Min/Max-Hold and Relative Offset
 - OL and Low Battery indication

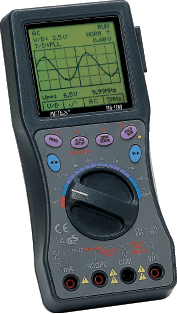

ms-1280

item
MS-1280/1280L
DC Voltage
400mV                          ±0.5% + 2dgts
4V to 600V                    ±0.8% + 2dgts
AC Voltage
4V to 40V                      2.0% + 5dgts (40~5)
400V to 600V               2.5% + 5dgts (40~2)
DC Current
400μA to 4mA                ±0.8% + 2dgts
40mA to 400mA             ±1.2% + 2dgts
AC Current
400μA to 400mA            2.0% + 5dgts (40~5)
Resistance
400Ω to 400KΩ              ±0.8% + 2dgts
4MΩ to 40MΩ                 ±1.5% + 5dgts
Capacitance
4nF to 400nF                  ±2.0% + 5dgts
4μF to 40μF                    ±3.0% + 5dgts
200μF                             ±5.0% + 5dgts
Frequency
4 to 4                      ±0.1% + 1dgts
Temperature
(MS-1280)
-40℃ to 200℃                ±3.0% + 5dgts
200℃ to 1200℃             ±3.0% + 2dgts
Logic
(MS-1280L)
Three Logic Level (Low, ---, Hi)
Continutiy
Buzzer sounds of Resistance less than 80Ω
Diode
Test current max. 1.5mA at 1KΩ
  (Forward voltage max. 2V)
Signal_out
1Hz~10KHz (13 steps)
LCD_Display
128 X 128 pixel graphic STN LCD
Safety
CE Marked and Designed to meet IEC 1010-1
