| 产品规格 |
| |
 |
|
|
|
|
|
|
|
 |
| |
|
|
| |
With Copper Tip
|
型号
|
KX-20
|
KX-30
|
KX-40
|
KX-60
|
KX-80
|
KX-100
|
|
额定电压 |
110V, 220VAC
50/60Hz
|
|
耗电量 |
20W
|
30W
|
40W
|
60W
|
80W
|
100W
|
|
尺寸 |
208mm
|
233mm
|
238mm
|
243mm
|
|
重量 |
50g
|
70g
|
75g
|
80g
|
With Long LifeTip
|
型号
|
KX-20R
|
KX-30R
|
KX-40R
|
KX-60R
|
KX-80R
|
KX-100R
|
|
额定电压 |
110V, 220VAC
50/60Hz
|
|
耗电量 |
20W
|
30W
|
40W
|
60W
|
80W
|
100W
|
|
尺寸 |
208mm
|
233mm
|
238mm
|
243mm
|
|
重量 |
50g
|
70g
|
75g
|
80g
|
|
|
|
|
|
|
| |
 |
KX-20/20R用发热芯 |
KS-20H |
| |
KX-30/30R用发热芯 |
KS-30H |
| |
KX-40/40R用发热芯 |
KS-40H |
| |
KX-60/60R用发热芯 |
KS-60H |
| |
KX-80/80R用发热芯 |
KS-80H |
| |
KX-100/100R用发热芯 |
KS-100H |
|
|
|
|
|
|
|
|
 |

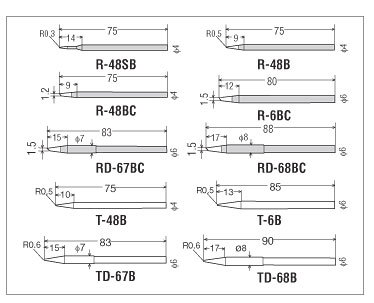

标准焊嘴对应表 |
|
KX-20用
|
R-48SB
|
|
KX-30用
|
R-48B
|
|
KX-40用
|
R-48BC
|
|
KX-60用
|
R-6BC
|
|
KX-80用
|
RD-67BC
|
|
KX-100用
|
RD-68BC
|
|
|
KX-20用
|
T-48B
|
|
KX-30用
|
T-48B
|
|
KX-40用
|
T-48B
|
|
KX-60用
|
T-6B
|
|
KX-80用
|
TD-67B
|
|
KX-100用
|
TD-68B
|
|
|
| |
|
