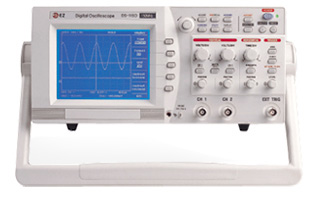

DS1100 100M蓝屏数字存储示波器

      (中文说明

Main Features :
100MHz frequency range, dual channel digitizer
Maximum 200MS/s realtime sampling, 25GS/s equal sampling
High-speed screen update
Long memory max 32KBytes/CH, wide waveform zoom in/out
Dual channel simultaneous 10ns glitch detection available, peak detection circuit included
Maximum input power: 400V (DC+AV peak)

DS1100 100M蓝屏数字存储示波器
Model DS-1100 is featured with DC to 100MHz, maximum 100MS/s realtime sampling per channel (one channel only max. 200MS/s), equivalent sampling rate of 25GS/s. Its 16bit high speed microprocessor adoption enables to acquire maximum 100,000points per second and quickly update the picture on the screen. Its basic memory capacity is 32KBytes and captured waveforms can be zoomed in and analyzed in detail. Also its built-in 10ns peak detection circuit enables to capture high frequency noise at a low speed time/div and magnify and analyze it using the zoom-in function. In addition, it can save up to 10 waveforms and provides diversified analysis function like FFT which is available at high priced products.

General Features
-80MHz Repeatitive Bandwidth, 2CH Dual Digitizer
-100MS/s Simultaneous Maximum Sampling Rate per channel
200MS/s Sampling Rate for one channel only
25GS/s Equivalent Sampling Rate per channel
-High Speed Screen Update using 16bit μ-Processor
-10ns Peak Detection for Glitch Capture

Convenient
Functions -Long Memory Max. 32KBytes/CH for flexible Waveform Zoom In/Out
-Direct Single Trigger Capture Function using a hot-key
-Simultaneous 5 Waveform informations
-Auto Measurement and FFT Analysis
-Auto Trigger Level Setting to 50%
-Saving 10 Waveforms & setup parameters
-Convenient inserting interface card for RS-232C, Hardcopy and USB

ACQUISITION Max. sample rate
200MSPS for one channel only, 100MSPS/CH (real time),
25GSPS/CH (equivalent)
Record length
Long Memory Max. 32kBytes/CH, Wide Waveform Zoom In/Out
Peak defect
Capture & displays event as narrow as 10ns GLITCH

VERRICAL
Frequency
bandwidth
DC-80MHz
Input channel
CH1, CH2
VOLTS / DIV
2mV.DIV~5V/DIV
Input impedence
1 Mohm // Approx. 20pF
Max. input volt
300V (DC+AC Peak) (AC < 1kHz)
Accuracy
3%
Input coupling
DC, AC, GND
Rising time
Approx. 2.3ns


MATH
-Arithmetric(ADD, SUBSTRACT, INVERSION)
-FFT : Hamming, Hanning and Retangular window

HORIZONTAL
TIME / DIV
Equivalent 2ns/div ~ 0.1μs
Realtime 0.25 μs/div~0.1s/div
Roll mode 0.2s/div~5s/div
Resolution
80ps
Accuracy
0.01%
Pre trigger
Max. 10div
magnification
ZOOM IN/OUT

TRIGGER
Mode
AUTO, NORMAL, SINGLE
Coupling
DC, AC, LF REJECT, HF TRJECT
Type
EDGE, TV
SLOPE
+ or -
Level
Manual setting or Automatic 50% setting
Source
CH1, CH2, EXT, LINE
Sensitivity
TRIGGER FREQUENCY SENSITIVITY
5mV~5V/div 2mV/DIV
INTERNAL
(CH1, CH2)
DC~20MHz 0.5 DIV 0.5 DIV
20MHz~80MHZ 1.5 DIV
80MHz~150MHz 2.0 DIV
EXTERNAL DC ~ 10MHz 0.2 Vp-p


DISPLAY
5.7" MONO LCD (320 X 240)

MENU
Display
Type Dots, Vectors
Format X-Y, Y-T
GRID Full, Cross, Board
Contrast Control possible
SAVE / RECALL
10 Setup, 10 Waveforms
This function is able to save waveform and setting state of present working environment and recall by the user.
Factory setup recall
UTILITY
Self Calibration
System condition
Cursor
Type : time, frequency, Voltage
Source : CH1, CH2
Measure
Max. 5 parameter auto measurement
(pk-pk, RMS, Mean, Frequency, Rising time, Falling time, period, Positive width, Negative width, Duty)


HOT-KEY
AUTO SET
VARTICAL, HORISONAL & Trigger setting
RUN/STOP
Waveform hole
SINGLE
Bandwidth 10MHz
HARDCOPY
Hardcopy through printer port or RS-232 port for thermal printer

POWER
Power supply
90V AC ~ 250V AC
Frequency
48Hz ~ 440Hz
Power consumption
30W


WEIGHT -6kg

SIZE
-338(W) x 167(H) x 371(L)

EMC
-CE (EN55011, EN50082-1)

SAFETY -CE (EN61010-1), meet UL3111-1
