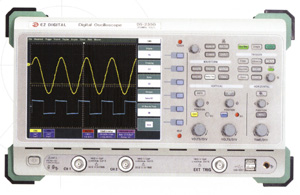

DS-2000 series is adopted with the latest
technologies to enable users to take advantage of
the advanced functions for more precision purposes.
It’s featured with DC to 350MHz, 1GS/s real time
sampling rate per each channel and designed to
measure high-voltage up to 20V/div by using general
test probes.
DS-2000 series provides a variety of interface
modules such as RS-232C,Ethernet,Centronics Printer
port, USB Host and Video Port. Especially
Ethernet(100base-T)interface as a standard accessory
provides an easy way to have access to the network
to get the necessary information while working.
In addition, USB 2.0 Host is suitable for saving or
transferring high capacity data by using external
devices.

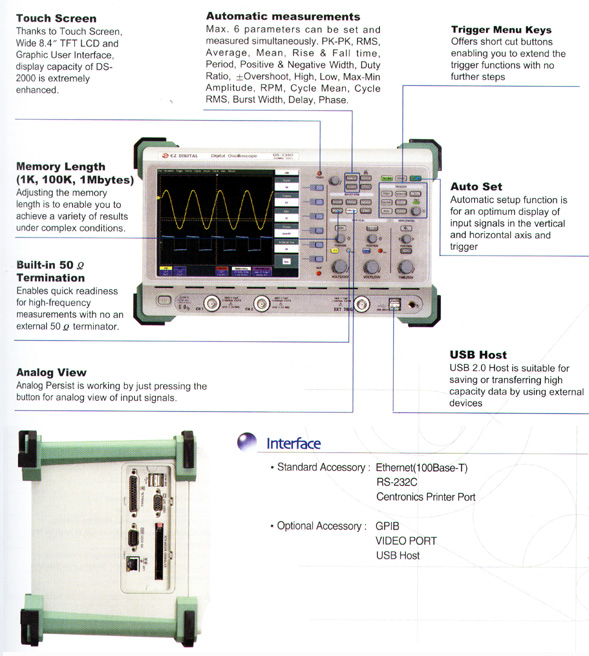

One of the distinguished features is that DS-2000
series is equipped with 8.4”TFT Color LCD and Touch
Screen. It results in our best effort toward
enabling all of you to enjoy high-end features at an
economic price and providing the optimum work
environment as well as the work efficiency.

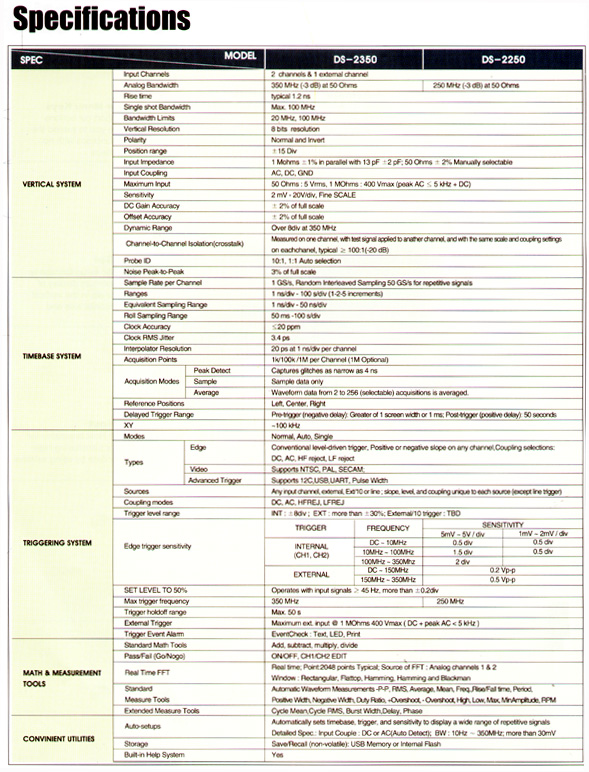

General Features
Frequency Bandwith:DC~250Mhz:DS-2250
DC~350Mhz:DS-2350
1GS/s Real-time Sampling Rate per each channel.
50GS/s Equivalent Sampling Rate per each channel.
8.4”TFT Color LCD Display (640×480 pixel),2 CH dual
Digitizer
Enhanced display capability through Analog Persist
and Graphic User Interface
Advanced Measurements are available by using
dedicated 32bit Digital Signal Processor
Single shot Bandwidth:Max.100MHz
Convenient Functions
Long Memory length Max.100Kbytes per channel for
flexible Waveform Zoom In/Out (1Mbytes:option)
Real Time FFT function
Auto Trigger Level Setting to 50%
Fast Trigger On/ Off
Hold Off
User Friendly Interface (USB 2.0 Host, Video
port,GPIB,Ethernet,RS-232C,Centronics printer port)
Save & Recall (non-volatile):USB Memory or Internal
Flash Memory
Multi languages
Built in Help menu
|
