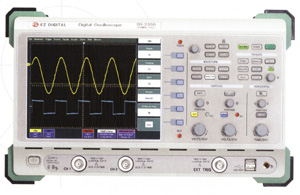

DS-2000 series is adopted with the latest technologies to enable users to take advantage of the advanced functions for more precision purposes.

It’s featured with DC to 350MHz, 1GS/s real time sampling rate per each channel and designed to measure high-voltage up to 20V/div by using general test probes.

DS-2000 series provides a variety of interface modules such as RS-232C,Ethernet,Centronics Printer port, USB Host and Video Port. Especially Ethernet(100base-T)interface as a standard accessory provides an easy way to have access to the network to get the necessary information while working.

In addition, USB 2.0 Host is suitable for saving or transferring high capacity data by using external devices.

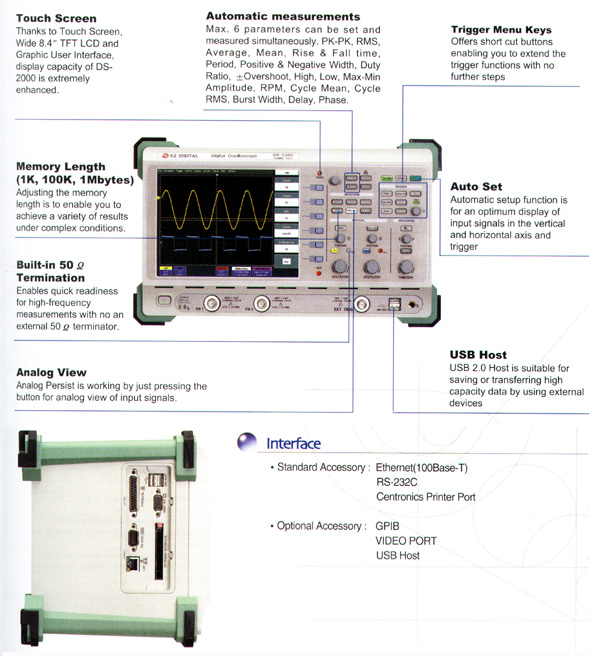

One of the distinguished features is that DS-2000 series is equipped with 8.4”TFT Color LCD and Touch Screen. It results in our best effort toward enabling all of you to enjoy high-end features at an economic price and providing the optimum work environment as well as the work efficiency.

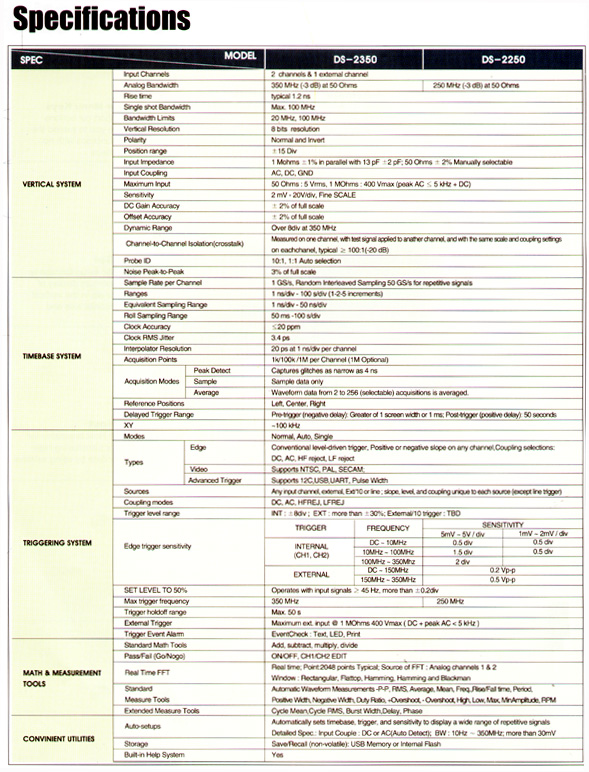

General Features

Frequency Bandwith:DC~250Mhz:DS-2250

                 DC~350Mhz:DS-2350

1GS/s Real-time Sampling Rate per each channel.

50GS/s Equivalent Sampling Rate per each channel.

8.4”TFT Color LCD Display (640×480 pixel),2 CH dual Digitizer

Enhanced display capability through Analog Persist and Graphic User Interface

Advanced Measurements are available by using dedicated 32bit Digital Signal Processor

Single shot Bandwidth:Max.100MHz

Convenient Functions

Long Memory length Max.100Kbytes per channel for flexible Waveform Zoom In/Out (1Mbytes:option)

Real Time FFT function

Auto Trigger Level Setting to 50%

Fast Trigger On/ Off

Hold Off

User Friendly Interface (USB 2.0 Host, Video port,GPIB,Ethernet,RS-232C,Centronics printer port)

Save & Recall (non-volatile):USB Memory or Internal Flash Memory

Multi languages
